Eileen Avenue ADU

A compact studio ADU brings a kitchen, bathroom, living and sleeping space into an existing 18-by-18-foot garage.

Project type
Garage conversion ADU
Scope
324 sq ft garage conversion to studio ADU
Role
Studio Bluework drawings
Work shown
AI presentation plans, elevations + renders
Context

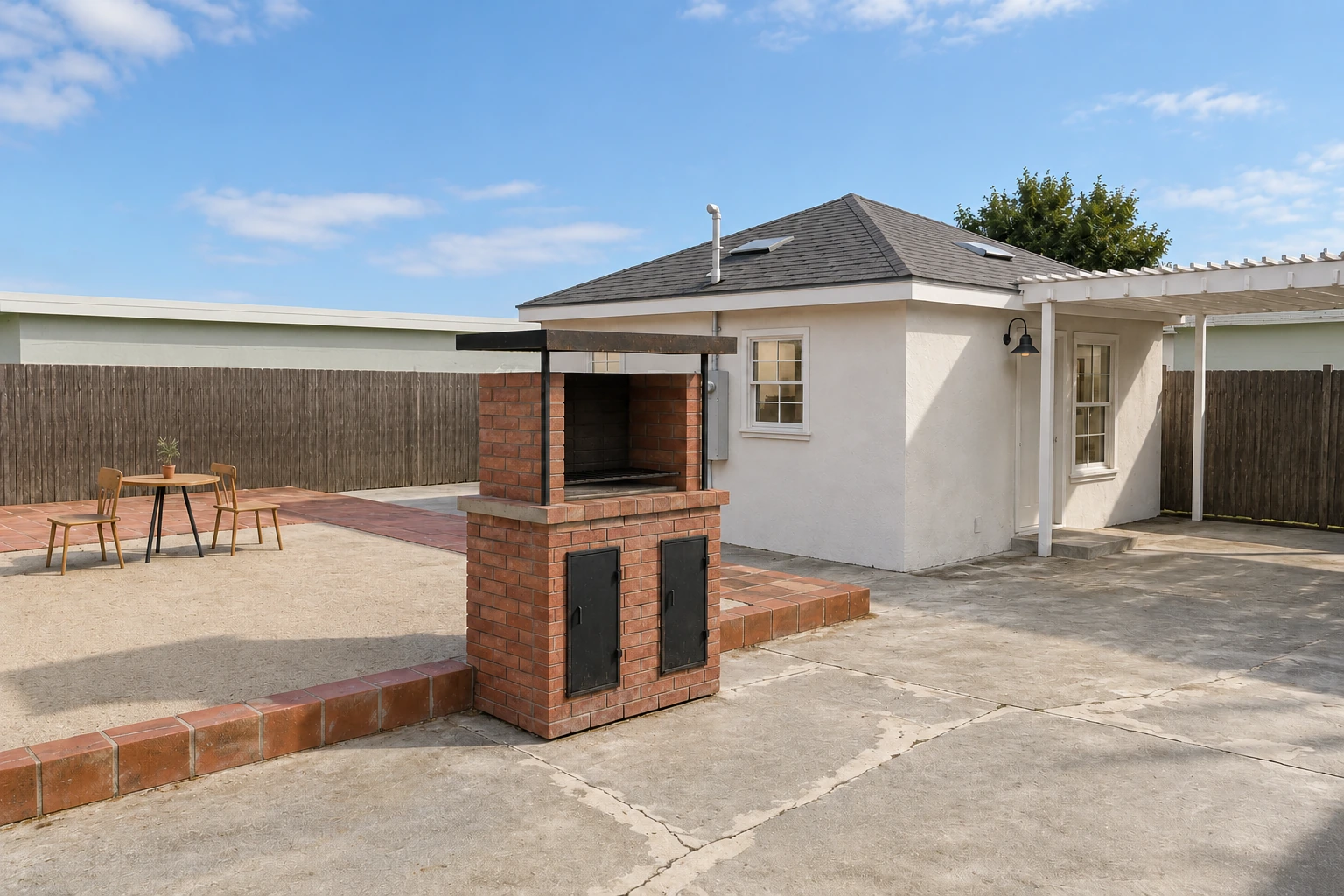

Exterior visualizationAI-rendered interpretation of the original project elevation. Building form and openings follow the source; materials, light and surroundings are illustrative. Not a completed-building photograph.

Exterior visualization

Open full resolution ↗

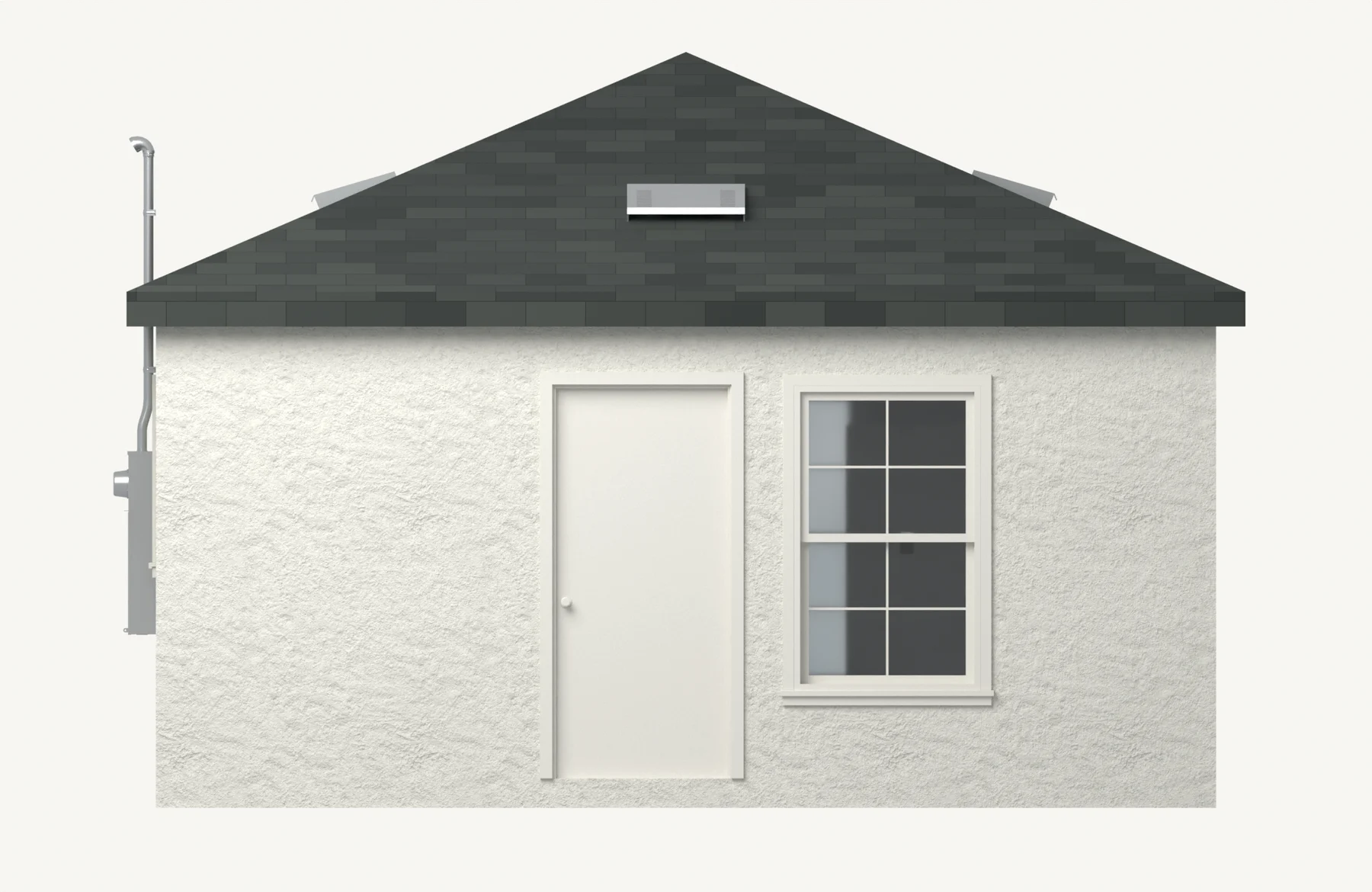

Eileen Avenue ADU: West elevation

AI-rendered interpretation of the original project elevation. Building form and openings follow the source; materials, light and surroundings are illustrative. Not a completed-building photograph.

01

Project overview

The Eileen Avenue proposal turns an existing garage behind the main house into a 324-square-foot accessory dwelling. The conversion works within the square footprint, bringing the essentials of a small home together in one compact plan.

The entrance opens to the living area, with the kitchen beside it. A sleeping area occupies the back of the room, alongside a separate bathroom and closet. The elevations show the entry door and adjacent window, additional windows on two other sides, and a largely closed fourth wall beneath a hipped roof.

02

Design decisions

  1. Use the existing footprint

    The existing and proposed plans share an 18-by-18-foot outline, allowing the change from garage to dwelling to be read directly.

  2. Make room for daily life

    Living, cooking and sleeping areas share the compact interior, with the bathroom and closet enclosed alongside them.

  3. Give the conversion an entrance

    The west elevation places a door and window together, marking the entry to the new dwelling.

03

Drawings, context, and details. Open any image for a closer look.

Drawings

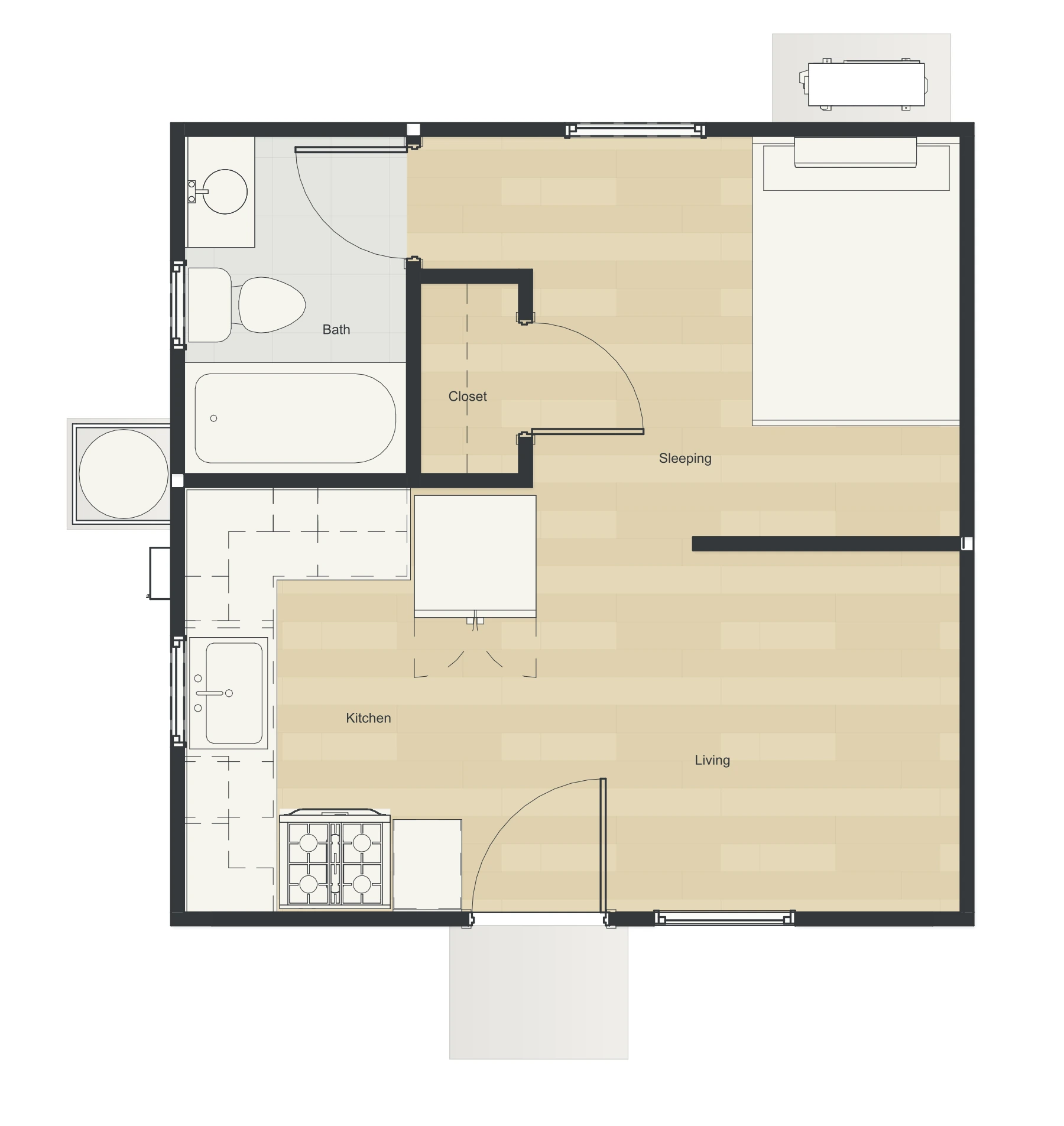

A garage becomes a studioThe proposed plan places living, sleeping, kitchen and bathroom uses within the existing footprint. AI-cleaned presentation copy with dimensions, tags and annotations removed.

A garage becomes a studio

Open full resolution ↗
Eileen Avenue ADU: A garage becomes a studio

The proposed plan places living, sleeping, kitchen and bathroom uses within the existing footprint. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Drawings
A second home on the lotThe site plan positions the converted garage behind the existing house. AI-cleaned presentation copy with dimensions, tags and annotations removed.

A second home on the lot

Open full resolution ↗
Eileen Avenue ADU: A second home on the lot

The site plan positions the converted garage behind the existing house. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Drawings
The existing garageThe original open garage footprint before the conversion. AI-cleaned presentation copy with dimensions, tags and annotations removed.

The existing garage

Open full resolution ↗
Eileen Avenue ADU: The existing garage

The original open garage footprint before the conversion. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Drawings
North elevationTwo windows and exterior service equipment shown on the north face. AI-cleaned presentation copy with dimensions, tags and annotations removed.

North elevation

Open full resolution ↗
Eileen Avenue ADU: North elevation

Two windows and exterior service equipment shown on the north face. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Drawings
East elevationThe east facade window beneath the hipped roof. AI-cleaned presentation copy with dimensions, tags and annotations removed.

East elevation

Open full resolution ↗
Eileen Avenue ADU: East elevation

The east facade window beneath the hipped roof. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Drawings
South elevationThe largely closed south facade retains the roof profile. AI-cleaned presentation copy with dimensions, tags and annotations removed.

South elevation

Open full resolution ↗
Eileen Avenue ADU: South elevation

The largely closed south facade retains the roof profile. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Drawings
A furnished plan studyAn AI-generated overhead presentation of the documented room arrangement. Furniture, finishes and minor details are illustrative; this view is not an electrical drawing.

A furnished plan study

Open full resolution ↗
Eileen Avenue ADU: Door and window schedule

An AI-generated overhead presentation of the documented room arrangement. Furniture, finishes and minor details are illustrative; this view is not an electrical drawing.

Details
Opening waterproofingA simplified presentation of the opening-waterproofing illustrations included in the source set. Text and annotations removed; not assembly instructions.

Opening waterproofing

Open full resolution ↗
Eileen Avenue ADU: Opening waterproofing

A simplified presentation of the opening-waterproofing illustrations included in the source set. Text and annotations removed; not assembly instructions.

Details
Eave assemblyThe documented fire-rated eave detail. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Eave assembly

Open full resolution ↗
Eileen Avenue ADU: Eave assembly

The documented fire-rated eave detail. AI-cleaned presentation copy with dimensions, tags and annotations removed.

04

Credits & context

Based on the Eileen Avenue plan records credited to Studio Bluework LLC / Alexis Vazquez. Simplified plans and rendered views interpret the documented design for presentation; they are not construction documents or completed-building photographs. Presentation images were refined with AI; dimensions and tags were removed. The source switch retains the original excerpt for comparison. Small graphic and fixture details may differ; use the original project documents for technical decisions.

Visualizations are not photographs of completed buildings. These selected materials are not a complete permit set or construction instructions.
