Tustin addition & outdoor living

A room addition, a new entrance and three outdoor structures extend an existing Tustin home.

Project type
Addition + outdoor spaces
Scope
413 sq ft addition, entry canopy, pergola + patio cover
Role
Studio Bluework drawings
Work shown
Model render, retouched photo + clean drawings
Context
Exterior visualizationAI-rendered interpretation of the original model view. Building form and openings follow the source; materials, light and surroundings are illustrative. Not a completed-building photograph.

Exterior visualization

Open full resolution ↗
Tustin addition & outdoor living: The addition in context

AI-rendered interpretation of the original model view. Building form and openings follow the source; materials, light and surroundings are illustrative. Not a completed-building photograph.

01

Project overview

This proposal adds 413 square feet to an existing single-family home. A new foyer and hallway connect the entrance to the room addition, while the existing kitchen, family room, bedrooms and garage remain part of the plan.

Outside, an entry canopy, pergola and patio cover give the house three distinct outdoor elements. The existing and proposed plans show how they fit around the home; elevations and sections explain how the new roof shapes meet the retained building.

02

Design decisions

  1. Connect the entrance and addition

    The new foyer leads into a hallway beside the room addition, with openings back to the existing family room.

  2. Make room outside

    The plan places the entry canopy, pergola and patio cover at different edges of the home, rather than treating them as one continuous structure.

  3. Work with the existing house

    The drawings distinguish the retained rooms from the new work and show the roof connections in plan, elevation and section.

03

Drawings, context, and details. Open any image for a closer look.

Context
The existing patio · retouched photoThe original site photograph with AI-assisted exposure and detail refinement. This shows the existing home before the proposed work; the unretouched source is available.

The existing patio · retouched photo

Open full resolution ↗
Tustin addition & outdoor living: The existing patio

The original site photograph with AI-assisted exposure and detail refinement. This shows the existing home before the proposed work; the unretouched source is available.

Drawings
Start with the existing home · schematic redrawAI presentation redraw of the existing arrangement. Fine partitions, door and fixture details differ from the source; this is a schematic overview, not an exact plan reproduction. Compare the original for the documented layout.

Start with the existing home · schematic redraw

Open full resolution ↗
Tustin addition & outdoor living: Start with the existing home

AI presentation redraw of the existing arrangement. Fine partitions, door and fixture details differ from the source; this is a schematic overview, not an exact plan reproduction. Compare the original for the documented layout.

Drawings

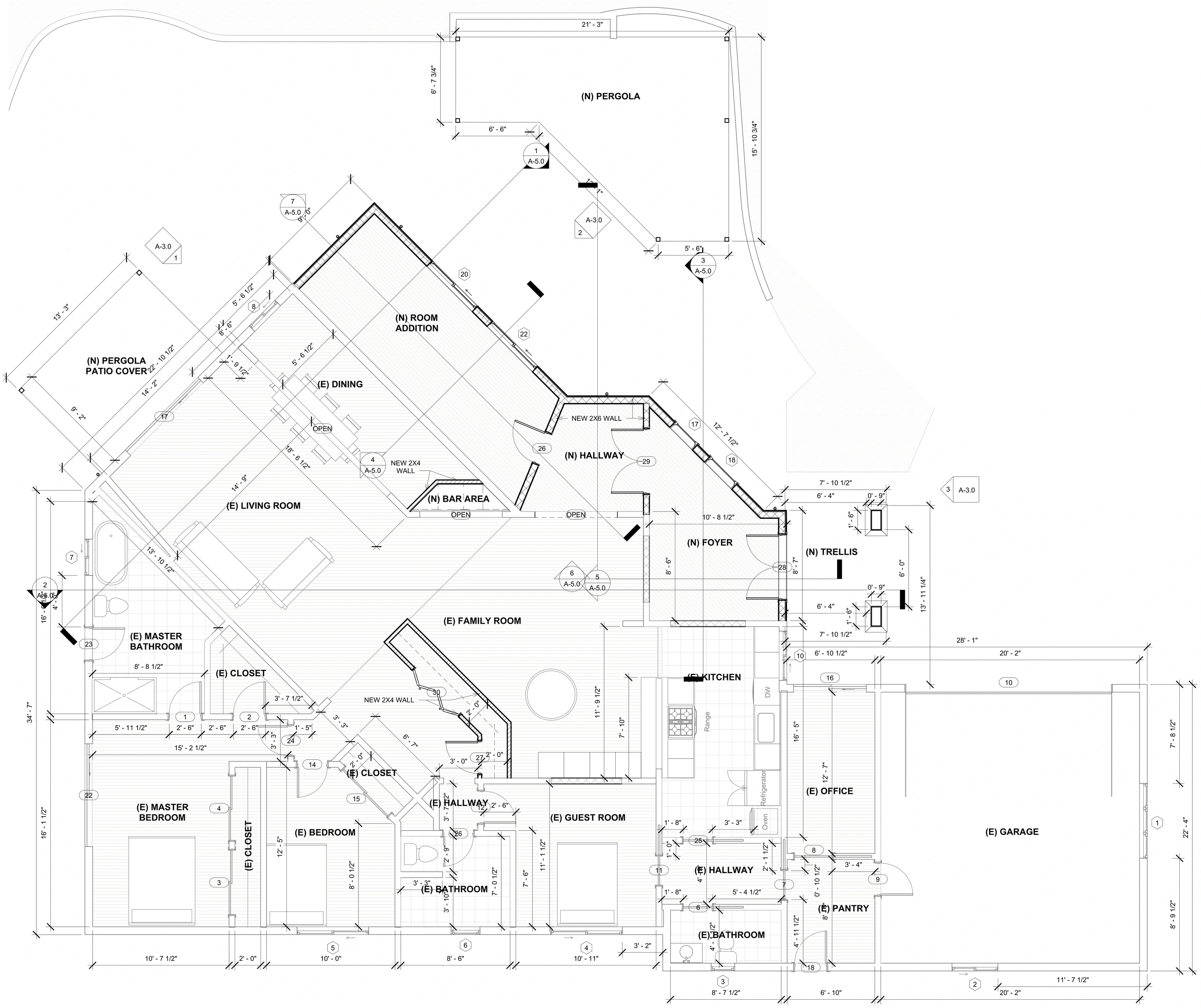

The proposed arrangement · schematic redrawAI presentation redraw of the proposed arrangement. Fine partitions, door and fixture details differ from the source; this is a schematic overview, not an exact plan reproduction. Compare the original for the documented layout.

The proposed arrangement · schematic redraw

Open full resolution ↗
Tustin addition & outdoor living: The proposed arrangement

AI presentation redraw of the proposed arrangement. Fine partitions, door and fixture details differ from the source; this is a schematic overview, not an exact plan reproduction. Compare the original for the documented layout.

Drawings
Where the work sitsThe addition and three outdoor structures occupy distinct parts of the existing residential site. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Where the work sits

Open full resolution ↗
Tustin addition & outdoor living: Where the work sits

The addition and three outdoor structures occupy distinct parts of the existing residential site. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Drawings

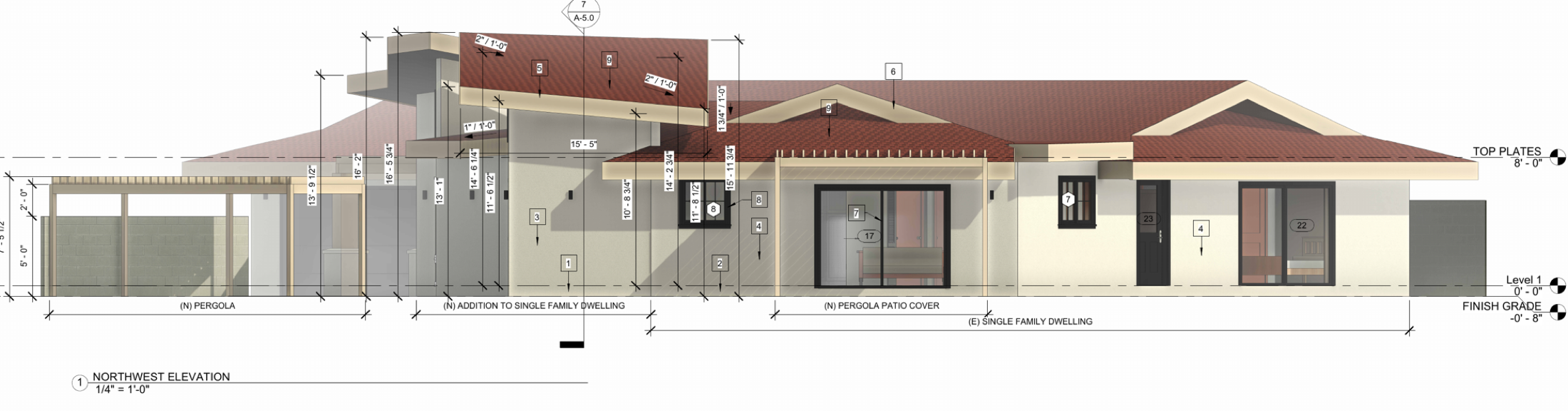

A long view of the additionThe northwest elevation puts the addition, roof changes and covered outdoor edge in one view. AI-cleaned presentation copy with dimensions, tags and annotations removed.

A long view of the addition

Open full resolution ↗
Tustin addition & outdoor living: A long view of the addition

The northwest elevation puts the addition, roof changes and covered outdoor edge in one view. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Drawings

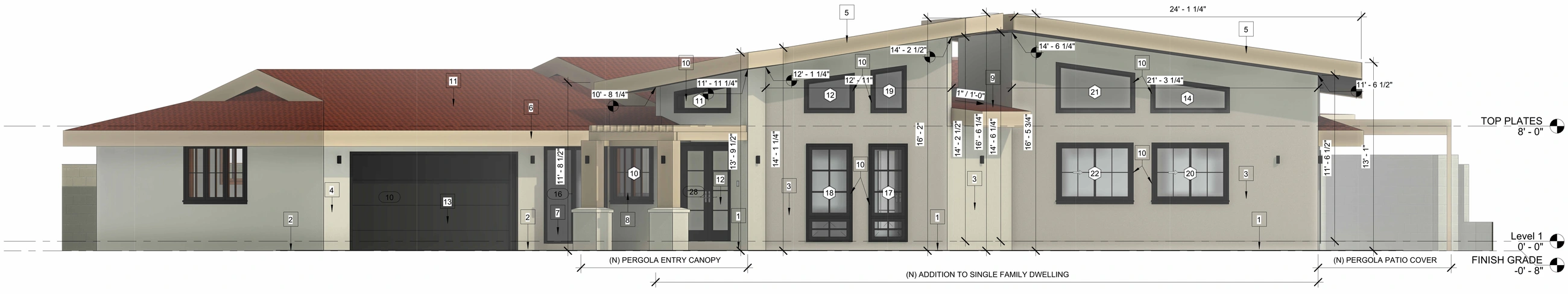

The retained and new rooflinesThe northeast elevation makes the change in roof heights and facade openings visible. AI-cleaned presentation copy with dimensions, tags and annotations removed.

The retained and new rooflines

Open full resolution ↗
Tustin addition & outdoor living: The retained and new rooflines

The northeast elevation makes the change in roof heights and facade openings visible. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Context
The outdoor edge · visualizationAI-rendered interpretation of the original project elevation. Building form and openings follow the source; materials, light and surroundings are illustrative. Not a completed-building photograph.

The outdoor edge · visualization

Open full resolution ↗
Tustin addition & outdoor living: The outdoor edge

AI-rendered interpretation of the original project elevation. Building form and openings follow the source; materials, light and surroundings are illustrative. Not a completed-building photograph.

Details
Where the roofs meetThis original roof-plan excerpt focuses on existing and proposed junctions and their height annotations. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Where the roofs meet

Open full resolution ↗
Tustin addition & outdoor living: Where the roofs meet

This original roof-plan excerpt focuses on existing and proposed junctions and their height annotations. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Details
Inside the additionAn architectural section links the proposed room, roof profile and ground level. This is a selected drawing view, not a structural-design instruction. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Inside the addition

Open full resolution ↗
Tustin addition & outdoor living: Inside the addition

An architectural section links the proposed room, roof profile and ground level. This is a selected drawing view, not a structural-design instruction. AI-cleaned presentation copy with dimensions, tags and annotations removed.

04

Credits & context

Original project drawings, model view and site photograph, with drawing credit to Studio Bluework LLC. The selected September 2025 set depicts proposed work; construction completion is not established by these materials. Presentation images were refined with AI; dimensions and tags were removed. The source switch retains the original excerpt for comparison. Small graphic and fixture details may differ; use the original project documents for technical decisions.

Visualizations are not photographs of completed buildings. These selected materials are not a complete permit set or construction instructions.
