Project workSouth Gate

South Gate ADU

An existing garage and a small addition become the plan for a compact one-bedroom ADU.

Project type
Garage conversion
Scope
441 sq ft garage conversion + 64.58 sq ft addition
Role
Studio Bluework drawings
Work shown
AI presentation plans, elevations + renders
Context

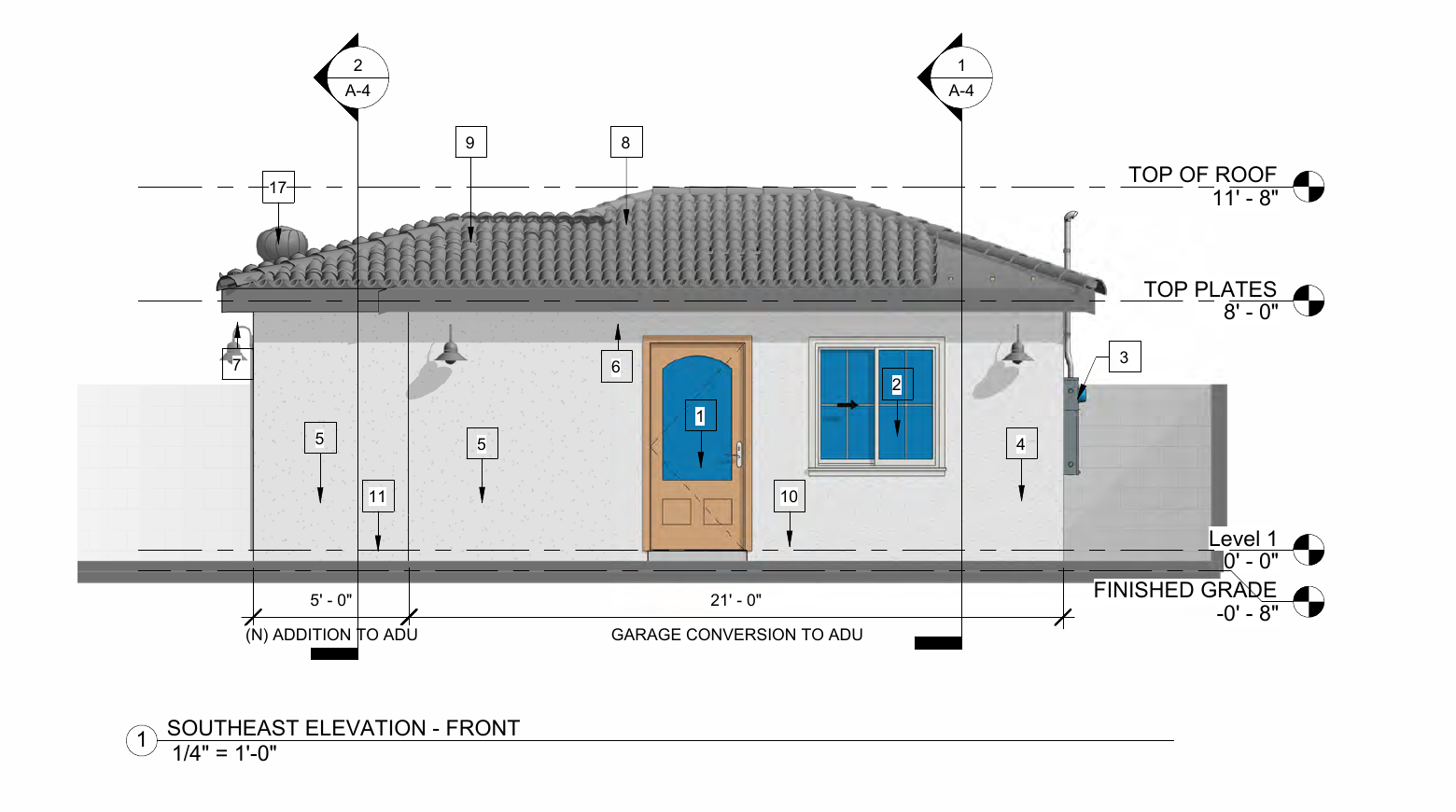

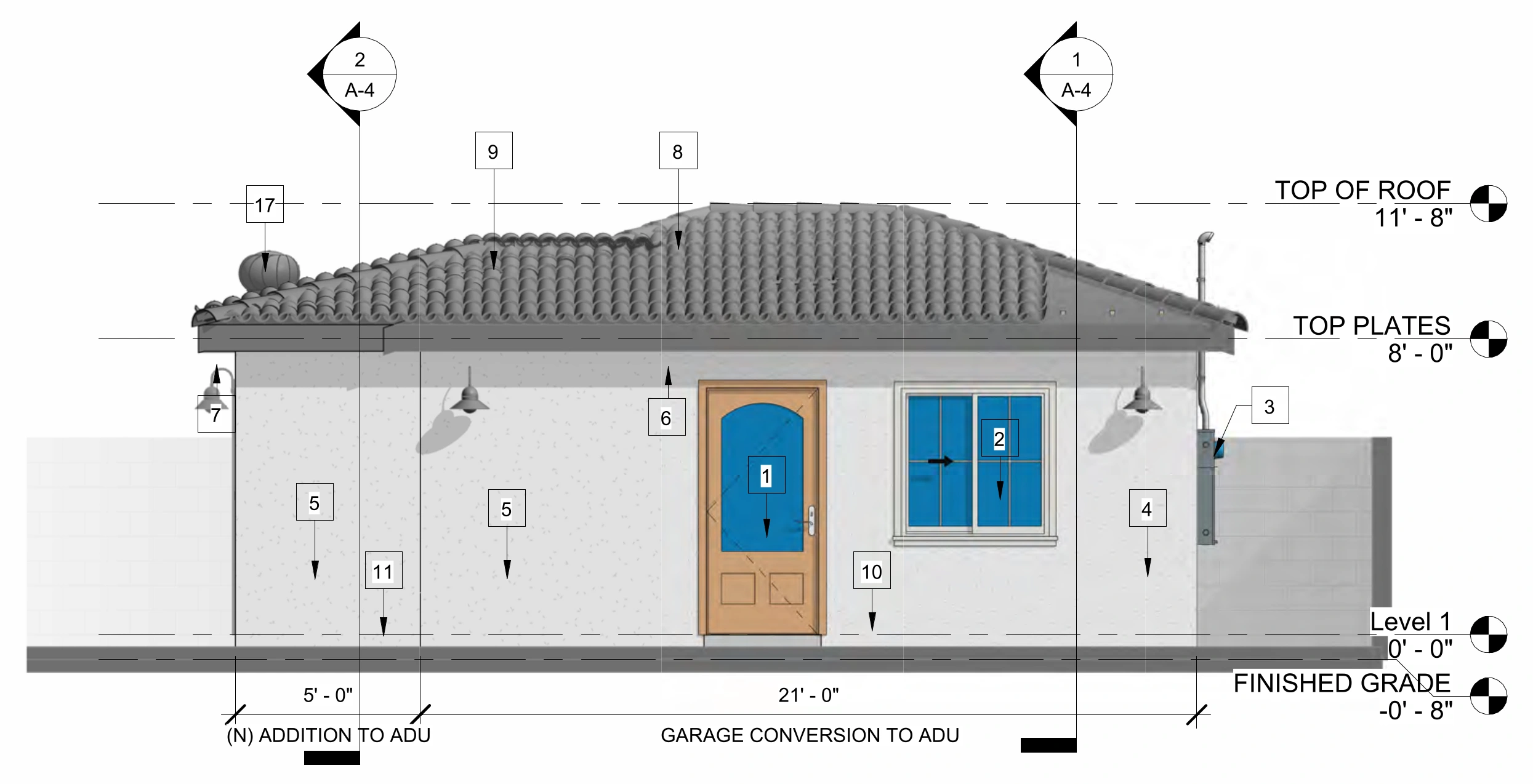

Exterior visualizationAI-rendered interpretation of the original project elevation. Building form and openings follow the source; materials, light and surroundings are illustrative. Not a completed-building photograph.

Exterior visualization

Open full resolution ↗
South Gate ADU: From garage to dwelling

AI-rendered interpretation of the original project elevation. Building form and openings follow the source; materials, light and surroundings are illustrative. Not a completed-building photograph.

01

Project overview

The proposal converts a 441-square-foot garage and adds 64.58 square feet, creating a 505.58-square-foot, one-bedroom ADU. The rear building sits apart from the existing main house, with its own entrance into the living area.

The kitchen shares the front of the plan with the living room. The bedroom sits behind, with a bathroom and closet alongside it. An existing laundry room remains identified separately, making it clear which spaces belong to the new dwelling and which were already there.

02

Design decisions

  1. Build on the garage footprint

    The drawings separate the garage conversion from the small addition, showing where existing space is reused and where the building expands.

  2. Keep the everyday spaces together

    The entrance opens to the living room beside the kitchen; the bedroom has a separate door farther into the home.

  3. Account for the existing laundry

    The retained laundry sits beside the new kitchen and bathroom. Plans and sections show this relationship instead of folding it into the ADU description.

03

Drawings, context, and details. Open any image for a closer look.

Drawings

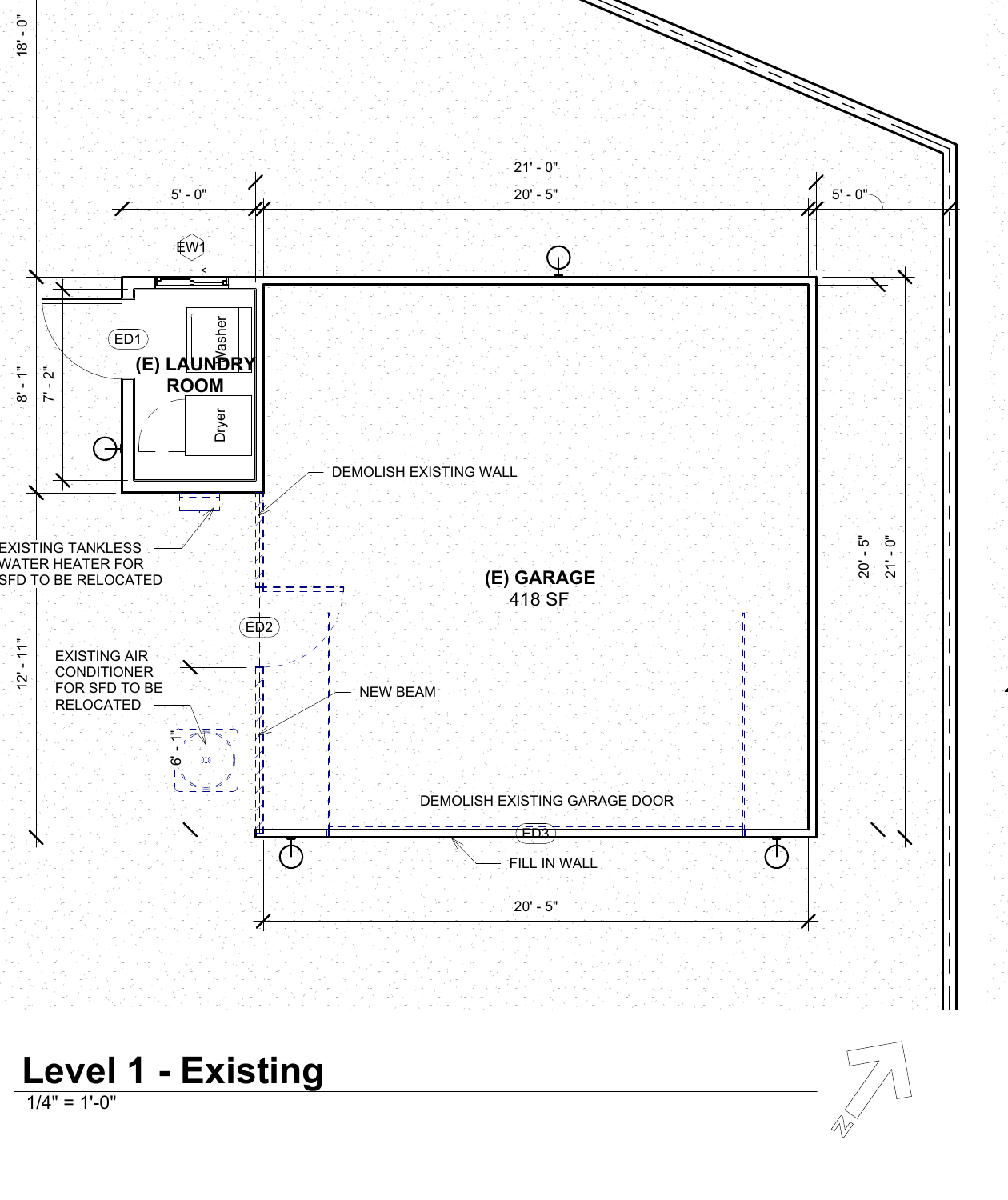

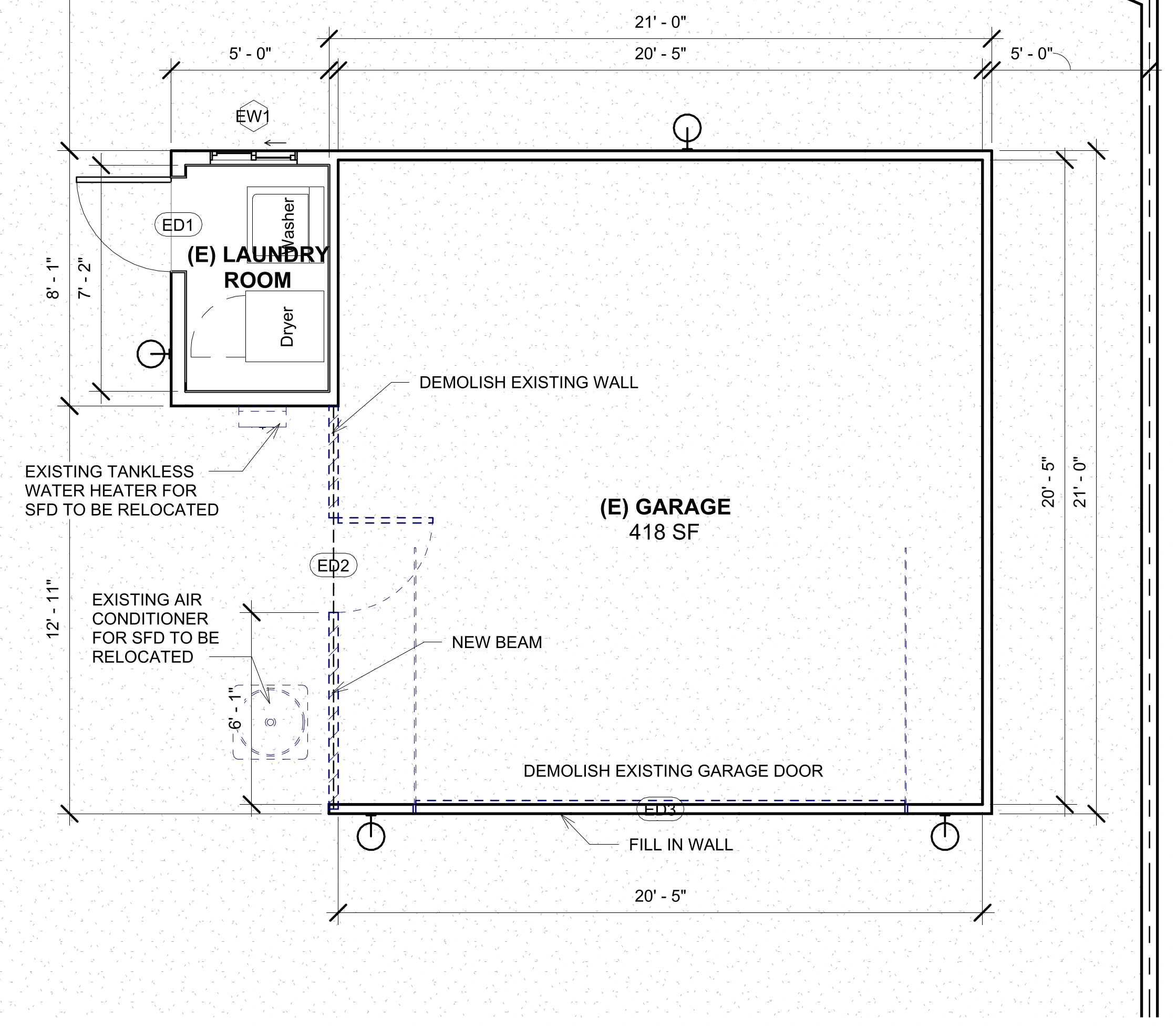

The garage before conversionThe existing garage and laundry are documented separately. The plan provides the baseline for the change in use. AI-cleaned presentation copy with dimensions, tags and annotations removed.

The garage before conversion

Open full resolution ↗
South Gate ADU: The garage before conversion

The existing garage and laundry are documented separately. The plan provides the baseline for the change in use. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Drawings

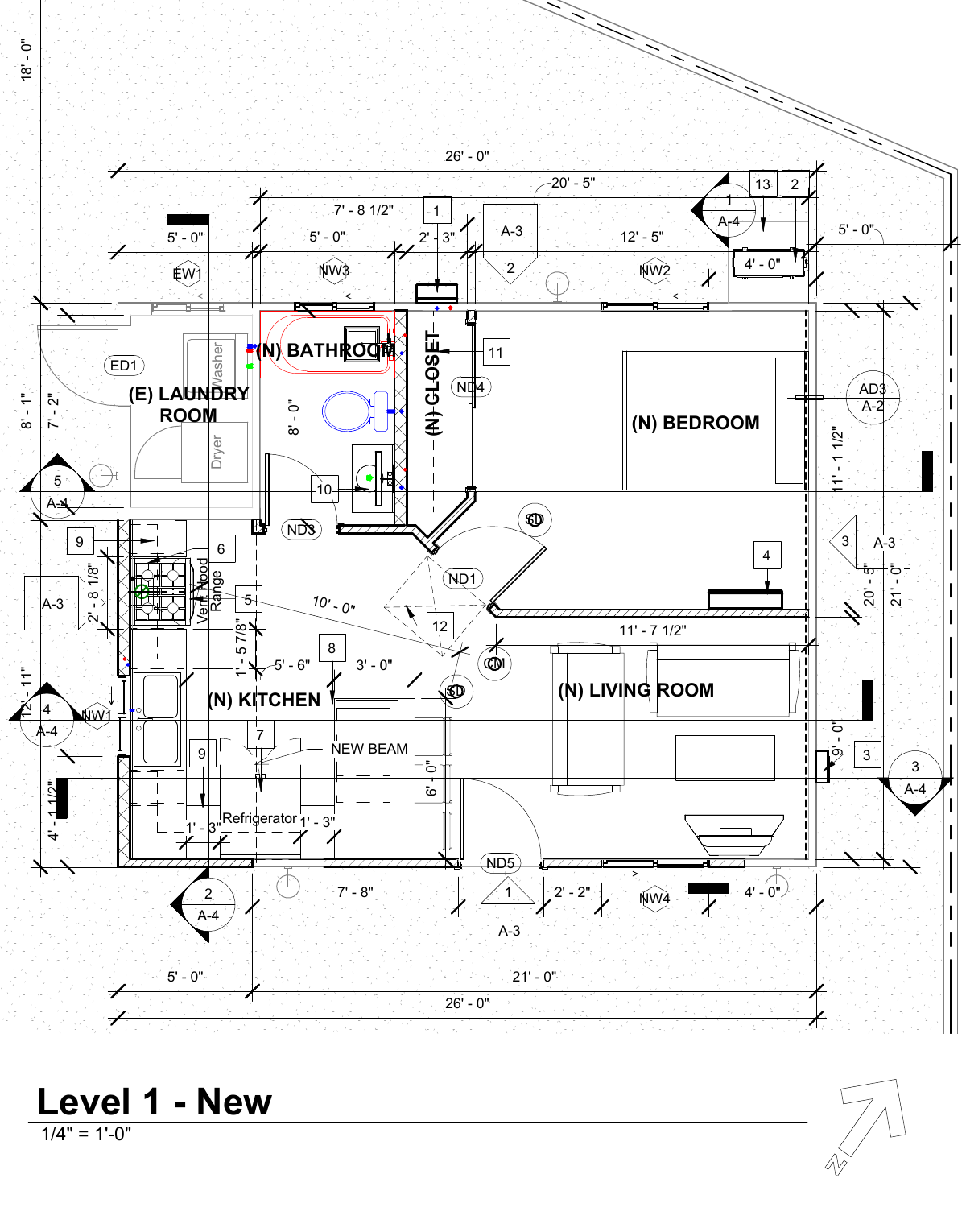

A one-bedroom ADUThe proposed plan organizes living, kitchen, bedroom and bathroom spaces while showing the existing laundry relationship. AI-cleaned presentation copy with dimensions, tags and annotations removed.

A one-bedroom ADU

Open full resolution ↗
South Gate ADU: A one-bedroom ADU

The proposed plan organizes living, kitchen, bedroom and bathroom spaces while showing the existing laundry relationship. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Drawings
The rear-building relationshipThe site drawing locates the garage ADU in relation to the retained house and lot. The separate front-house JADU is outside this project story. AI-cleaned presentation copy with dimensions, tags and annotations removed.

The rear-building relationship

Open full resolution ↗
South Gate ADU: The rear-building relationship

The site drawing locates the garage ADU in relation to the retained house and lot. The separate front-house JADU is outside this project story. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Context
The rear elevation · visualizationAI-rendered interpretation of the original project elevation. Building form and openings follow the source; materials, light and surroundings are illustrative. Not a completed-building photograph.

The rear elevation · visualization

Open full resolution ↗
South Gate ADU: The rear elevation

AI-rendered interpretation of the original project elevation. Building form and openings follow the source; materials, light and surroundings are illustrative. Not a completed-building photograph.

Drawings
The quieter sideThe southwest elevation shows the largely solid side wall beneath the existing roof form. AI-cleaned presentation copy with dimensions, tags and annotations removed.

The quieter side

Open full resolution ↗
South Gate ADU: The quieter side

The southwest elevation shows the largely solid side wall beneath the existing roof form. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Drawings
The addition and laundry edgeThe northeast elevation records how the addition and existing laundry meet the garage-conversion volume. AI-cleaned presentation copy with dimensions, tags and annotations removed.

The addition and laundry edge

Open full resolution ↗
South Gate ADU: The addition and laundry edge

The northeast elevation records how the addition and existing laundry meet the garage-conversion volume. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Drawings

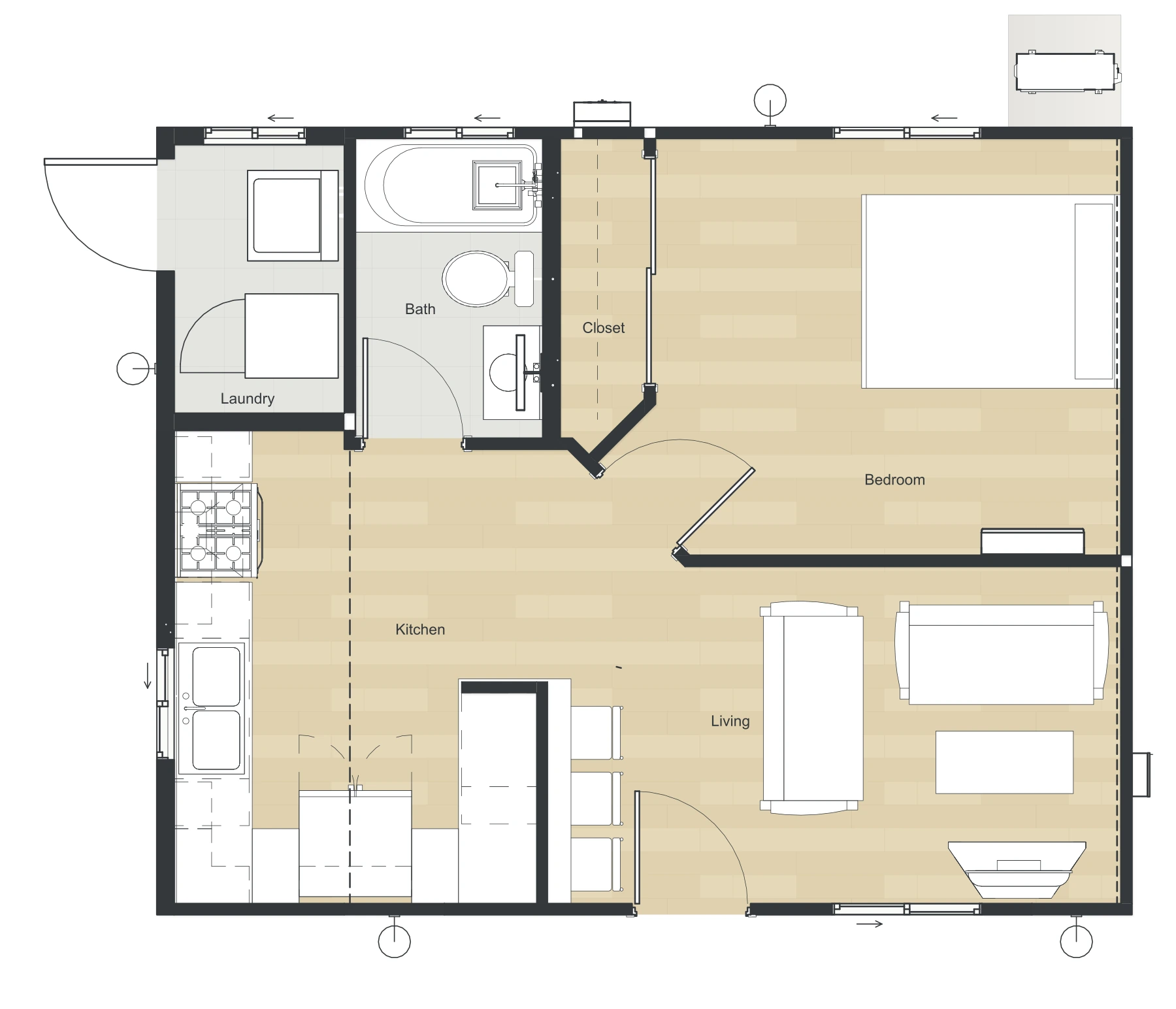

A furnished plan studyAn AI-generated overhead presentation of the documented room arrangement. Furniture, finishes and minor details are illustrative; this view is not an electrical drawing.

A furnished plan study

Open full resolution ↗
South Gate ADU: Coordinating the rooms

An AI-generated overhead presentation of the documented room arrangement. Furniture, finishes and minor details are illustrative; this view is not an electrical drawing.

Details
Living room and bedroom in sectionThe section connects the roof profile, occupied spaces and floor level across the new dwelling. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Living room and bedroom in section

Open full resolution ↗
South Gate ADU: Living room and bedroom in section

The section connects the roof profile, occupied spaces and floor level across the new dwelling. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Details
Kitchen and laundry in sectionThe architectural section shows the proposed kitchen beside the existing laundry and their respective floor levels. AI-cleaned presentation copy with dimensions, tags and annotations removed.

Kitchen and laundry in section

Open full resolution ↗
South Gate ADU: Kitchen and laundry in section

The architectural section shows the proposed kitchen beside the existing laundry and their respective floor levels. AI-cleaned presentation copy with dimensions, tags and annotations removed.

04

Credits & context

Original garage-ADU drawings credited to Studio Bluework LLC, from the approved-plan source set. This project covers the rear garage conversion and addition. The separate front-house JADU is outside this scope; approved drawings do not establish completed construction. Presentation images were refined with AI; dimensions and tags were removed. The source switch retains the original excerpt for comparison. Small graphic and fixture details may differ; use the original project documents for technical decisions.

Visualizations are not photographs of completed buildings. These selected materials are not a complete permit set or construction instructions.
